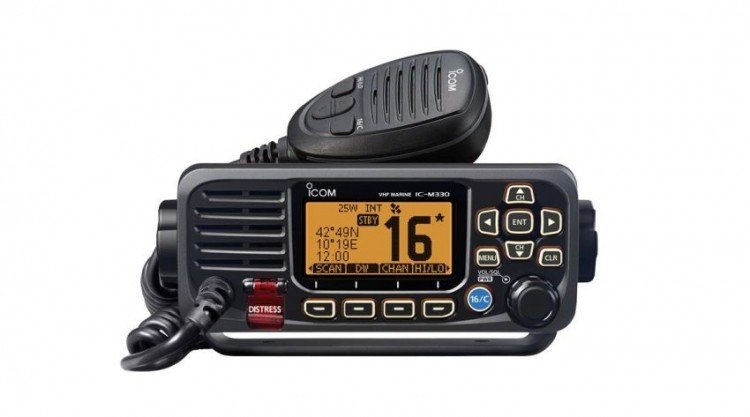

Icom IC-M330GE VHF Radio with GPS Ultra Compact Model

Icom have now entered the ultra compact VHF market with the IC-M330GE. This small space saving radio can now fit in those tight spaces where a traditional full sized radio cannot. It may be small in size but is certainly not lacking in features.

Ultra Compact Body, Flexible Installation

The compact IC-M330GE measures only 156.5 (W) × 66.5 (H) ×110.1 (D) mm making it ideal for a cockpit where space is limited.

Intuitive User Interface

A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.

New Speaker Delivers Dynamic, Clear Audio

A newly designed speaker delivers distortion-free clear audio even at full volume. It provides dynamic and clear audio over a wide bass and treble range.

Class-Leading Receiver Performance

The IC-M330GE’s receiver provides reliable communication in RF busy environment like a marina. (Selectivity and IMD: more than 70 dB)

Built-in Class D DSC

The radio monitors CH 70 continuously, even while you are receiving another channel. DSC functions include distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.

Built in GPS Receiver and External GPS Antenna

The GPS receiver provides your location, bearing and speed by using information from GPS, GLONASS and SBAS. The acquired position information can be used for DSC calls. An external GPS antenna is supplied to maximise coverage.

IPX7 waterproof (1 m depth of water for 30 minutes)

AquaQuake™ prevents audio degradation from a water-logged speaker

Common NMEA interface for external GPS/NAV connection

MA-500TR Class B AIS transponder compatible

Tag scan and favourite channel functions

Function for monitoring CH16 and/or call channel

Priority scan function

Display and keypad backlighting

External speaker connection

3-digit or 4-digit channel display selectable

NMEA0183 input and output

UK Marina channels

Self adhesive external GPS/GLONASS antenna

Specifications

Size W x H x D: 156.5 x 66.5 x 110.1mm

Cutout W x H: 137 x 51mm

Weight (approx.) 0.8kg

Power supply: 10.8-15.6 V DC

Waterproof: IPX7

External GPS/GLONASS antenna size W x H x D: 37 x 37 x 10mm

External GPS/GLONASS antenna cable length:  5m

In The Box

IC-M330GE VHF

Mounting Bracket & Knobs

Mic Hanger and screws

Fused power cable

Simple Flush mount kit

GPS/GLONASS external antenna
